Mini DTS ( 4CH EMG System ) 조회 223

옵션표

본문

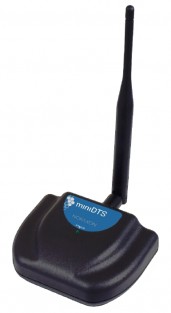

Mini DTS (  4CH EMG System )

Features

- 근육의 움직임을 측정 하는 간편한 시스템

- 비 침습적 방식

Applications

- 물리치료 . 재활 . 스포츠 의학 . 스포츠 생리 . 인간공학. 전문 임상 연구분야. 로봇. 재활. 근육관련 생체역학.

Specifications

  • Measurable parameters:
  • State of tension: frequenc[Hz]
  • Biomechanical properties: Elasticity, Dynamic Stiffness[N/m]
  • Viscoelastic properties: Creep, Relaxation time [ms]
  • Measurement sensor:
  • 3-axis Digital Acceleration Sensor,
  • Measurement range ±8G, Resolution 11 bits,
  • Sensitivity mg 13-bit;
  • Sensitivity range due to temp. ±0.01%
  • Battery:
  • Built-in rechargeable Lithium Polymer Battery
  • 2260mAh, 3.7V, 8.4Wh
  • Replaceable only by manufacturer
  • Recharge time: Max 5 hours
  • Recharge cycles: Min 500 cycles
  • Operational time:
  • Min 8 hours (in case of normal workload)
  • 1 second tap interval
  • Min 15 000 continuous measurements in horizontal position, with
