이동형 통합 측정 장비  ( Portable Lab System )

Features

Portable Lab System 은 실내외 이동형 통합 Biomechanics 측정 시스템 으로서, 근전도 시스템, IMU 동작분석시스템, 고속 2D 비디오 켑쳐시스템이 내장되어 있으며, 압력분포, 지면반발력 외부 장치와 실시간 연동이 가능하여 어떠한 장소 와 관계없이 이동하여 간편 설치 측정 할 수 있는 통합 시스템 이다.

  • - 근전도, 동작분석, 2D Video 카메라, 압력분포, 지면 반발력 측정이 가능 시스템
  • -  근전도 최대 8 채널 Free electrode type solution, fine wire included
  • - 4 to 32 channel configuration (2 belt receivers)
  • - Portable belt receiver with retransmission option
  • - Retransmission range of up to 100 meters
  • - Compatiblity to existing Noraxon hardware and software
  • - Data logger option via Flash Memory card
  • - Full compatible to ISEK and SENIAM standards for surface and fine wire EMG
  • - Easy installation: no need to struggle with the Windows network setting
  • - Optional fine wire amplifiers with selectable band width
  • - Operates EMG and other biomechanical sensors
  • - Unique receiver concept with analog input channels and up to 32 analog output channels
  • - Li-ion battery with 8 hours operation time
  • - Precise and flexible wireless synchronization trigger system
  • -

Applications

  • - Manual Muscle Function Test
  • - Symmetry and Coordination Test
  • - Gait Analysis
  • - Temporomandibular Dysfunction
  • - Muscular Feedback Training
  • - Incontinence Therapy

Specifications

  • - 16 bit resolution
  • - Sample rate 1,500 for 16 channels
  • - Sample rate 3,000 for 8 channels
  • - Selectable low pass filter 500, 1000, 1500Hz
  • - No notch (50/60Hz) filters
  • - 1st order high-pass filters set to 10Hz +/- 10% cutoff
  • - Baseline noise: <1uV RMS
  • - Input impedance > 100 Mohm
  • - CMR > 100dB
  • - Input Range +/- 7mV
  • - Probe battery life of 8 hours
  • - Base gain 200
  • - Snap or pinch style terminal electrode connections

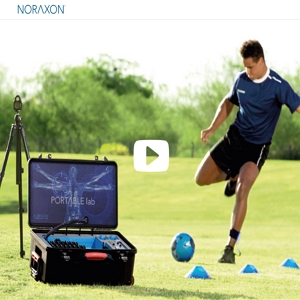

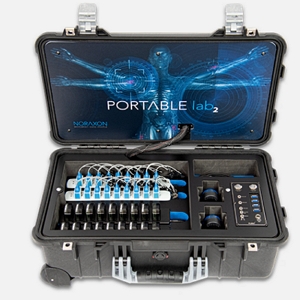

 ef4e525816ad16c6921686cfe3108e41_1590483832_3264.jpg   ef4e525816ad16c6921686cfe3108e41_1590484004_2675.jpg
                       ( Portable Lab System)
